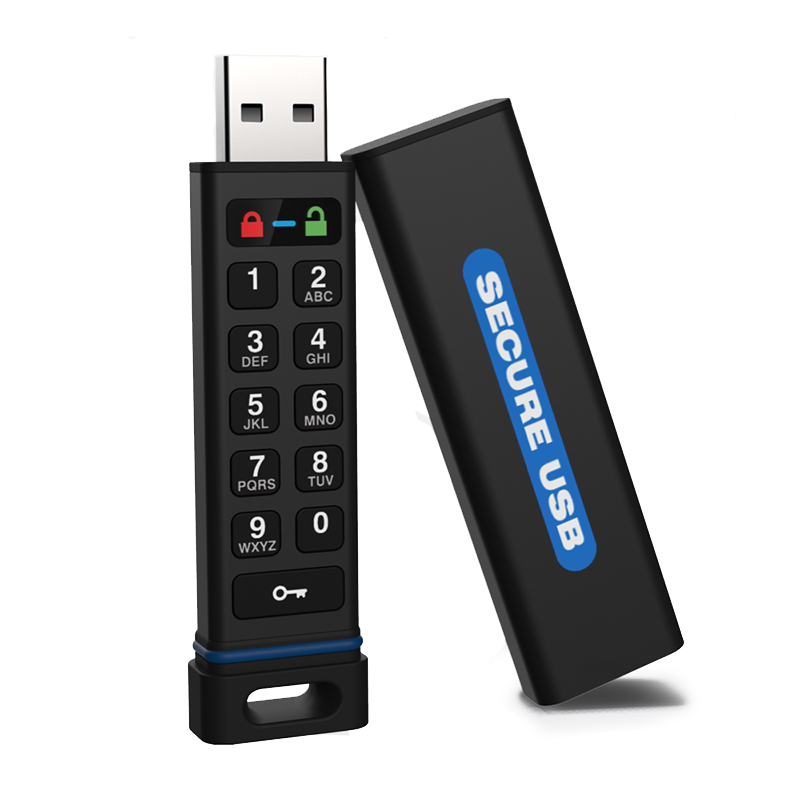

SecureData SecureUSB KP
Hardware-Encrypted USB Flash Drive with Keypad

Overview

Physical Security for Digital Data with the SecureUSB KP.

Protect digital files and prevent data leaks with the portable SecureUSB KP. The device is hardware-encrypted and is FIPS-validated. It is unlocked when a user enters the PIN via the onboard keypad. The keypad itself is wear-resistant to prevent unauthorized persons from seeing commonly used numbers.

In addition to physical security, this flash drive has brute-force, anti-hacking technology. This feature erases the data on the device after 10 consecutive, failed PIN entries. The device itself is IP57 dust- and water-resistant, and is OS-independent to be used across any device with a USB port.

USB flash drive with extra security features:

• FIPS 140-2 Level 3 Validated: Certificate #3522
• Award Winning: Red Dot 2019 Award Winner
• IP57 Certified: dust- and water-resistant (up to 1 meter)
• Works with any device with a USB port
• Hardware encryption: XTS-AES 256-bit
• Interior parts covered in epoxy to prevent media removal from hackers
• Alphanumeric keypad for user authentication (7 – 15-digit PIN)
• Admin/user modes
• Read Only mode
• Inactivity auto-lock
• Preloaded with DriveSecurity ESET Antivirus (1-year license included)
• Built-in battery for convenient pre-plug PIN entry

Features

Specifications

Specifications
Capacity	8 GB – 64 GB
Size	With sleeve - H: 78 mm W: 20 mm L: 10 mm Without sleeve - H: 65 mm W: 20 mm L: 10 mm
Weight	With sleeve: 22 grams Without sleeve: 14 grams
Data Transfer Speed	Reads up to 152 MB per second; writes up to 118 MB per second
Keypad	Wear-resistant keypad
Security Module Validation	FIPS 140-2 Level-3 Validated
Authentication method	User authentication via onboard keypad
Interface	USB 3.0/3.1 gen1/3.2 gen1
Data Protection	Real-time military grade XTS-AES 256-bit full-disk hardware encryption
Waterproof	IP57 Certified (up to 1 meter)
Tamper-evident	Protected with epoxy compound to prevent physical access to the device through tampering
Brute-force defense	Erases all data after 10 consecutive, incorrect PIN entry attempts
Immune to Bad USB	Yes; firmware updates not allowed
Roles/Permissions	1 Admin, 1 User
Read Only Mode	Yes
Inactivity Auto-lock	Predefined times between 1 and 60 minutes
OS Compatibility	Windows, MacOS, Linux, Chrome, Thin Clients, Embedded Systems, VMware, Citrix (no software or drivers needed)
Regulatory Approvals	FCC, CE
Warranty	3-year limited

Video

SecureDrive Encrypted Drives Product Line Demo

This video explains the functionality and showcases the features of the SecureDrive product line.

Frequently Asked Questions

How do I unlock/lock the flash drive?

Press the Key button and enter your user PIN, followed by the Key button again. To lock, disconnect the drive or press and hold the Key button for 2 seconds.

Can I use it without a PIN?

No. The SecureUSB KP is a sophisticated, hardware-encrypted drive which must have a PIN to operate.

How quickly can I purge the data?

Press 7 + Key, then enter 999, then press 7 + Key. All user data and drive formatting will be immediately reset beyond recovery.

If I forget my user password, does anyone have a copy or can I reset it?

If the Admin password was set up, the drive can be unlocked with Admin PIN. If no Admin PIN exists or it is not available then there are no backdoors nor resets. After 10 consecutive, incorrect attempts the brute-force, anti-hacking mechanism wipes all user data and drive attributes.

Why should I set up Admin PIN?

The key advantage is that in case the user PIN is entered incorrectly 10 consecutive times, the anti-hacking mechanism wipes the user PIN attributes but leaves the user data intact so that no more attempts to unlock via User Mode can be complete, but an Admin PIN can unlock the drive without data loss.

Do Admin mode and User mode see different files?

No. Admin mode and User mode view identical contents. Admin mode can override User settings such as Read Only and Auto-lock.

If I reset my drive can SecureData get my files back?

No. Resetting the flash drive activates a crypto erase command which deletes and then regenerates the encryption key. Once the key is gone there is absolutely no way to get it back. Even though there will be encrypted data on the flash drive, there is no viable way to decrypt it.

If I lost my drive, can I reset it remotely to delete my data?

No. Since the SecureUSB KP does not use our Remote Management system, there is no way to reset it remotely. Rest assured if the drive is lost or stolen without the user PIN, after 10 consecutive, incorrect attempts the anti-hacking mechanism will be triggered and wipe out all user data. (Remote Management options are available on any SecureUSB BT).

Documentation

Download the SecureData SecureUSB KP Keypad Encrypted Flash Drive Datasheet (.PDF)
